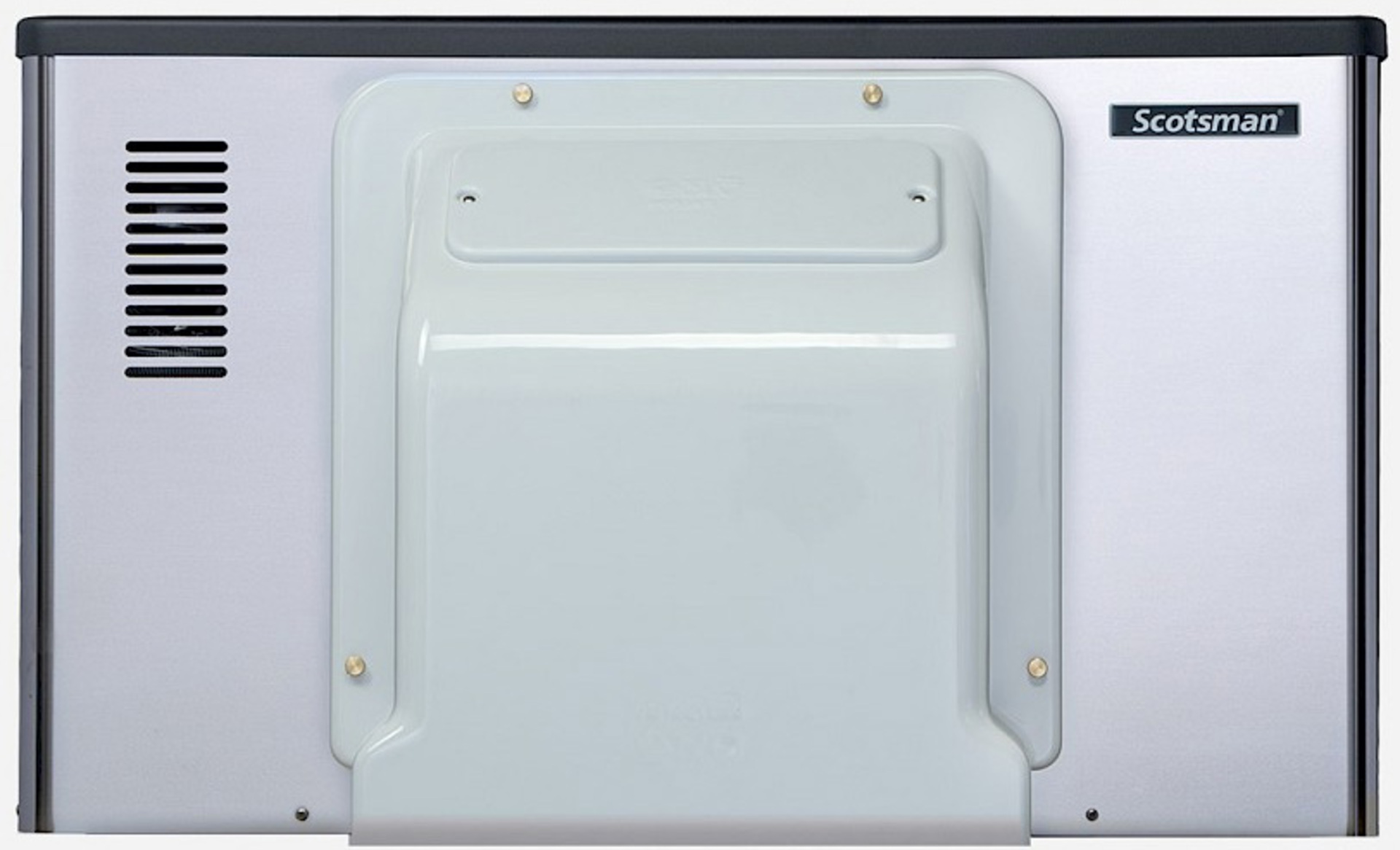

FLAKE ICE MACHINE SCOTSMAN MAR SPLIT

FLAKE ICE MACHINE SCOTSMAN MAR SPLIT SERIES

-Split system version with integrated unit. Storage bin not supplied, purchased separately.
-For connection to a condensing unit or central cooling system (low temperature).
-Evaporator and ice scraper blade in AISI304 stainless steel.
-Water collection tray in food-grade ABS plastic, easy to remove for cleaning and disinfection.
-Electromechanical control panel. Electrical protections, rotation speed and reverse phase controls.
-Low water level sensor protection. Hermetic compressor. Thermostatic storage bin ice level sensor. Drive motor / gear reducer with V-belt drive.
-Stainless steel panel with Scotch-brite finish, rounded corners, easy to remove for maintenance.
-Supplied with expansion valve, solenoid valve, pressure regulating valve (KVP), heat exchanger.

Specifications

MODEL	MAR 78	MAR 108	MAR 128	MAR 208	MAR 308
DIMENSIONS mm	880x820x520H	880x820x520H	880x820x520H	1300x860x520H	1300x860x520H
PRODUCTION kg/24h	510	700	1000	1650	2200
SKIN THICKNESS mm	2	2	2	2	2
STORAGE	UBH 1100 (553 kg)	UBH 1100 (553 kg)	UBH 1600 (812 kg)	UBH 1600 (812 kg)
POWER	395W	395W	395W	395W	395W
CURRENT	400V	400V	400V	400V
REFRIGERANT	R452A	R452A	R452A	R452A	R452A

Video

Files

Download files

• https://stamogloupro.gr/files/SCOTSMAN-MAR 78 SPLIT.pdf - 952 Kb
• https://stamogloupro.gr/files/SCOTSMAN-MAR 108 SPLIT.pdf - 616,8 Kb
• https://stamogloupro.gr/files/SCOTSMAN-MAR 128 SPLIT.pdf - 950,6 Kb
• https://stamogloupro.gr/files/SCOTSMAN-MAR 208 SPLIT.pdf - 478,6 Kb
• https://stamogloupro.gr/files/SCOTSMAN-MAR 308 SPLIT.pdf - 481,3 Kb
